MoCap Gloves
Get Ready for the 4K Revolution!
Created from 25+ years of mocap expertise, all Synertial products utilise innovative cutting-edge IMU technology for outstandingly high capture speeds. Patent-pending 15-axis saturation-resistant technology, 4K deg/sec gyros plus a minimum of 200 FPS, the G6 range is redefining inertial motion capture.
- Expandable skeleton models with International Society of Biomechanics
- Nomenclature & joint coordinate system
- Synchronised ECG
- Ability to create analytic graphs
- Capture, calibrate & review on a smartphone
- USB, Wi-Fi, Bluetooth, GPS, ECG
- 200Hz internal update rate
- Vibrator for communications
- Industry-leading inertial skeleton models
- Configurable 2-step calibrations with/without jigs, fingers & body
- Plug-ins for HTC VIVE, Unreal, Unity, Motion Builder, Process Simulate
- Glove markers for optical systems
- UDP triggers start/stop timecode sync for optical systems
- 4000 deg/sec gyros
- 10Hz GPS
- Synchronised ECG
- Patent-pending 15-axis sensors
- Stretch cables – up to 135%
- Embedded vibrator & ECG nodes
- Hand washable with electronics (IPX5)

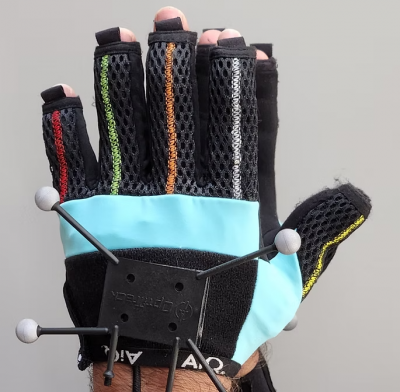

Synertial’s 9-sensor system utilises 9 IMUs for exceptional quality hand capture.
These Gloves feature sensors on all middle phalanges of the fingers, 3 on the thumb, and 1 on both the palm and the back of the hand. User-configured interpolation and extrapolation provides full-finger data, widely used across animation, industry 4.0 and robotics.
Tech Specs
IMU
Speed – 4000 deg/sec, +/- 16G accelerometers
Dimensions – 5x13x18 mm
Hub
Internal storage – unlimited number of files
Connectivity – WiFi, Bluetooth or wired
Operating systems – PC, Android, iOS
Dimensions – 65x65x20 mm
Modules – GPS
Power – 3.3V – 5V (operational voltage 3.3V)
Operational
Capture speed – 200 FPS
Battery life – 2 hours 45 minutes (unlimited via hotswap)
Plug-ins – Unity, UE4, MoBu, Siemens PLM, Optitrack Motive
Carry case – Pelli
Clothing – Lycra nylon 80% spandex 20%
Synertial’s 12-sensor system utlises 12 IMUs for exceptional quality hand capture.
These models include sensors on the proximal and medial phalanges of the fingers, leaving only the distal phalanges for interpolation. The 12-sensor Glove is a robust all-rounder, with applications across multiple industries.
Tech Specs
IMU
Speed – 4000 deg/sec, +/- 16G accelerometers
Dimensions – 5x13x18 mm
Hub
Internal storage – unlimited number of files
Connectivity – WiFi, Bluetooth or wired
Operating systems – PC, Android, iOS
Dimensions – 65x65x20 mm
Modules – GPS
Power – 3.3V – 5V (operational voltage 3.3V)
Operational
Capture speed – 200 FPS
Battery life – 2 hours 45 minutes (unlimited via hotswap)
Plug-ins – Unity, UE4, MoBu, Siemens PLM, Optitrack Motive
Carry case – Pelli
Clothing – Lycra nylon 80% spandex 20%
Synertial’s 16-sensor system utlises 16 IMUs for the highest possible data capture.
These models feature sensors on all phalanges of the finger, except the distal phalange of the pinky, and even include a sensor to capture the movement of the 5th metacarpal. This is the optimal glove for medical research and high-fidelity robotics analysis.
The number one option for when accuracy is vital.
Tech Specs
IMU
Speed – 4000 deg/sec, +/- 16G accelerometers
Dimensions – 5x13x18 mm
Hub
Internal storage – unlimited number of files
Connectivity – WiFi, Bluetooth or wired
Operating systems – PC, Android, iOS
Dimensions – 65x65x20 mm
Modules – GPS
Power – 3.3V – 5V (operational voltage 3.3V)
Operational
Capture speed – 200 FPS
Battery life – 2 hours 45 minutes (unlimited via hotswap)
Plug-ins – Unity, UE4, MoBu, Siemens PLM, Optitrack Motive
Carry case – Pelli
Clothing – Lycra nylon 80% spandex 20%
