Ranger 35 | 47

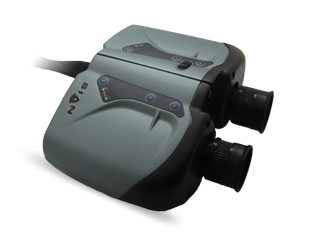

NVIS Ranger Virtual Binocular Display with dual SXGA OLED microdisplays, adjustable focus, up to 47 degree diagonal FOV, central hinge IPD adjustment, and 4 programmable USB joystick buttons with z-axis scroller. External mounting plate accommodates industry standard motion sensors. Optional tripod mount available.

Technical Specifications
Optical
FOV, Circular35° (RANGER 35)
FOV, Vertical28° (RANGER 47)
FOV, Horizontal36° (RANGER 47)
FOV, Binocular (diagonal)47° (RANGER 47)
Pupil Size5, Non-Real mm
Eye Relief15 mm (RANGER 47 Tactile)
15 mm (RANGER 47)
13 mm (RANGER 35)
Geometric Distortion< +10% (RANGER 47 Tactile)
< +10% (RANGER 47)
< +9% (RANGER 35)
Brightness (MAX)40 fL
Contrast (Min.)10000:1
Image Defect CriteriaSee document 104921
Spatial Resolution1.6 arcmn/pxl (RANGER 47)
2.1 arcmn/pxl (RANGER 35)
Microdisplay
Display TechnologyOrganic Light-Emitting Diode (OLED)
ResolutionSXGA 1280 x 1024
Color Depth24-BIT (8 bits per R,G,B)
Video
Video Input FormatSXGA 1280 x 1024 @ 60 Hz
Latency< 0.002 ms
Power
Power Consumption5 W
Power Source100-240 VAC, 50-60 Hz, 0.4 A (IEC Type C13 Cord)
Physical
Size (envelope)8.1 L X 6.4 W X 3.0 H in
Mass855 g
Cable Length5 m
Compliancy
CE ComplianceCE Compliant
RoHS ComplianceRoHS Compliant
