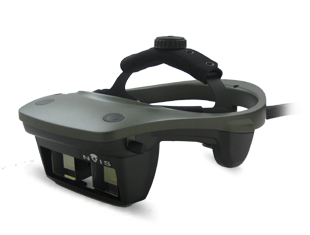

nVisor ST50 Head-Mounted Display. 1280×1024 full color with 50° diagonal field-of-view in see-thru or immersive modes for professional augmented and virtual reality applications. Includes built-in microphone and stereo headphones. Dual HDMI interface supports stereopsis via two video inputs.

Optical
FOV, Vertical	32°
FOV, Horizontal	40°
FOV, Binocular (diagonal)	50°
See-Thru Transmission	44%
Pupil Size	10, Non-Real mm
Eye Relief	23 mm
Geometric Distortion	-2% Maximum (Barrel)
Brightness (MAX)	23 fL
Contrast (Min.)	10000:1
Image Defect Criteria	See Document 104921
Spatial Resolution	1.88 arcmn/pxl
Microdisplay
Display Technology	Organic Light-Emitting Diode (OLED)
Resolution	SXGA 1280 x 1024
Color Depth	24-BIT (8 bits per R,G,B)
Video
Video Input Format	SXGA 1280 x 1024 @ 60 Hz
Video Interface	DVI over HDMI
Latency	< 0.002 ms
Audio
Headphone Response	15-25,000 Hz
Headphone Impedance	60 Ohms
Microphone, Standard	Integrated, Shell-mounted Microphone
Mic Transducer Principle	Electret
Controls
Interpupillary Distance (IPD) Range	53-73 (Independent left and right) mm
Power
Power Supply	INPUT: 100-240 VAC, 0.3A 50-60 Hz. OUTPUT: +5 V DC, 2 A min.
Physical
Size (envelope)	14.2 L x 9.0 W x 8.6 H max in
Mass	1050 g
Environment
Operating Temperature Range	0 to 30°C
Operating Humidity Range	85% Relative Humidity
Storage Temperature Range	-20 to 60°C
Storage Humidity Range	85% Relative Humidity
Compliancy
CE Compliance	CE Compliant
RoHS Compliance	RoHS Compliant

---

---
