MOVIT SYSTEM
Inertial wearable system for
Motion Capture and Motion Analysis
The System

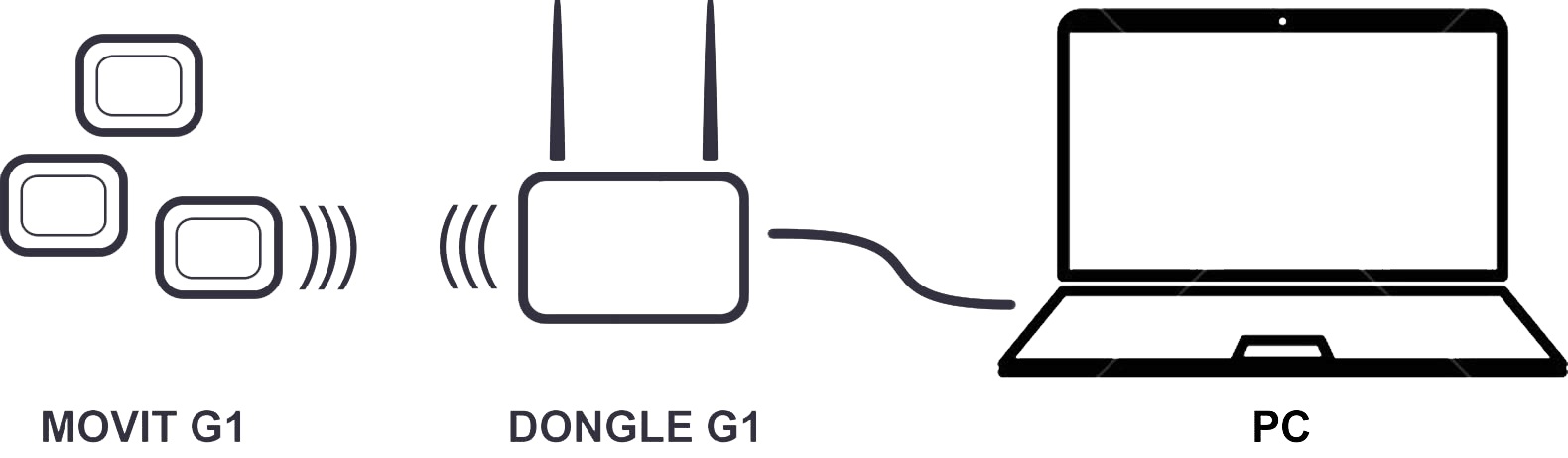

Movit System – 3D Edition is the ideal tool for researchers, professionals and specialists in every sector interested in objectively monitoring and quantifying human movements. Easy, fast and usable in any environment, thanks to the network of wearable inertial sensors, it provides a complete and accurate movement analysis. The system can be used both indoors and outdoors. It has no constraints of brightness and environment. No external infrastructure is required. The inertial devices are called Movit G1 and the USB receiver connected to the PC is called Dongle G1.

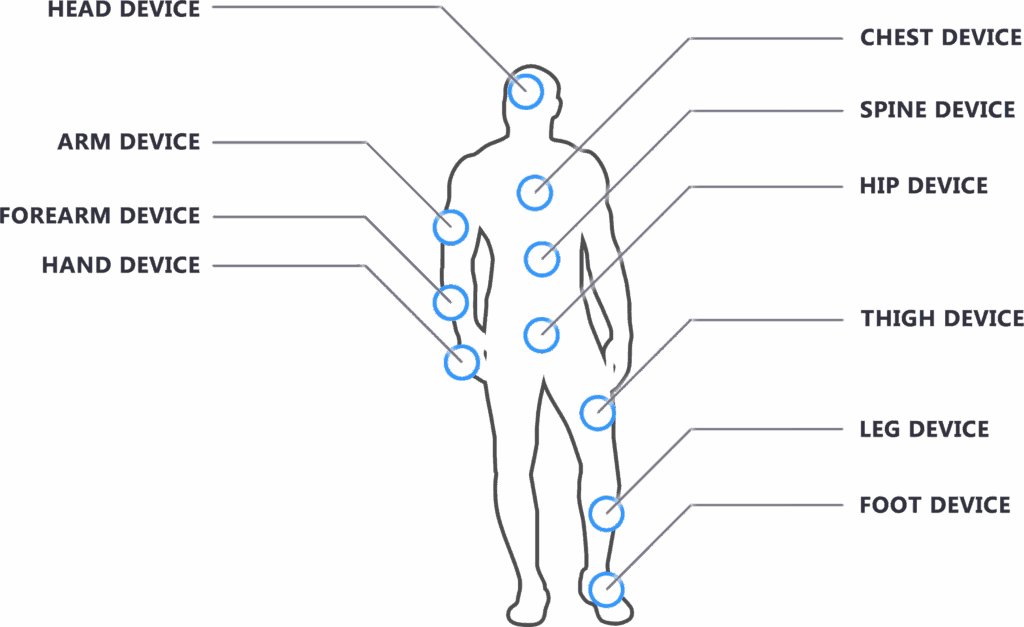

Positioning
Each Movit G1 device has been designed to be universal and applicable on the main parts of the body. Through the wearable holders and a quick coupling / release system it is possible to wear the devices easily.
Outcomes

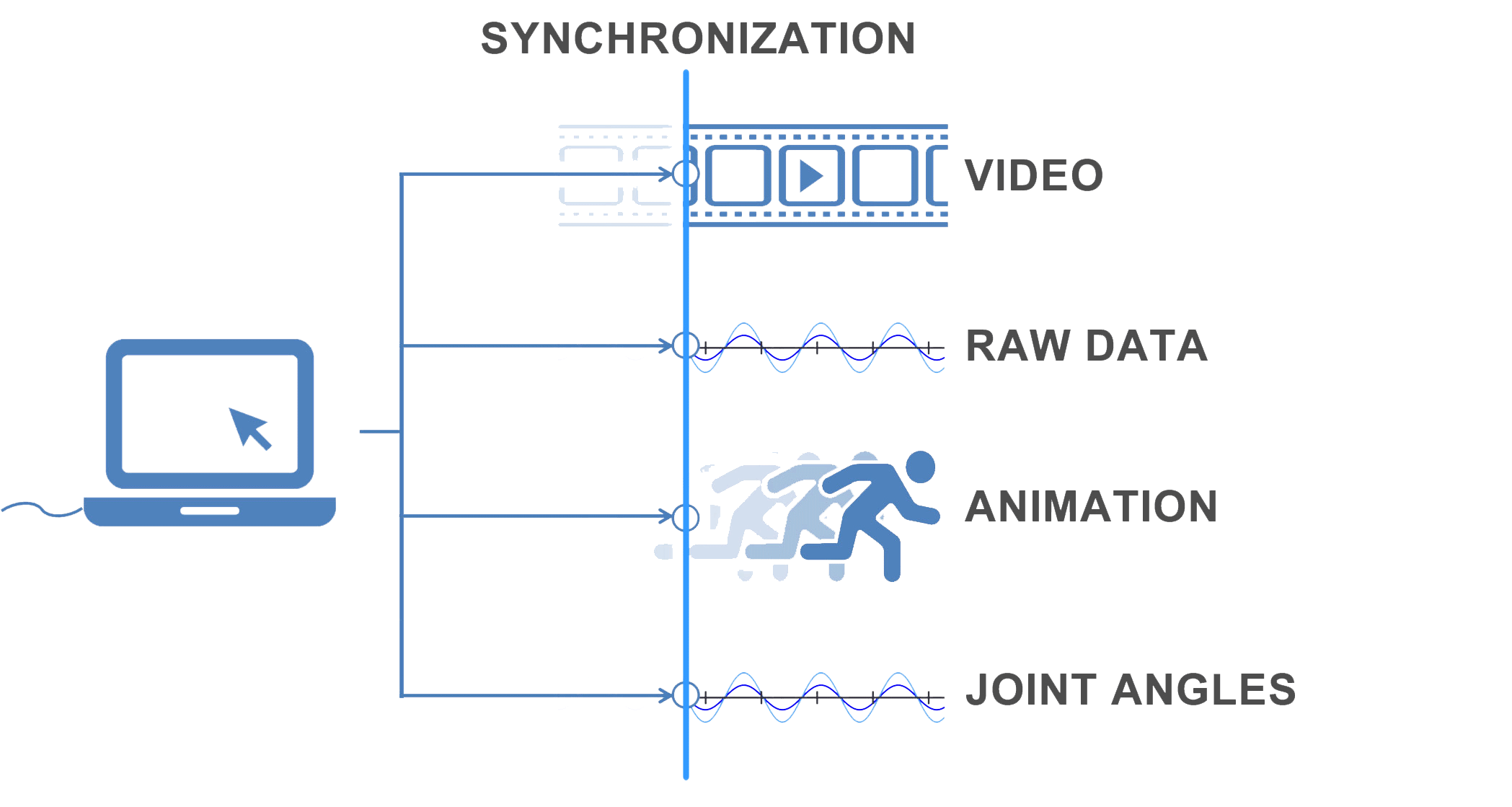

The system outputs raw data files, animation files, video files, and joint angle files. Each output can be selected or deselected. The raw data are the accelerometer, gyroscope, magnetometer, and quaternion values. The animation recorded is a standard BVH file. The video is a standard video file. The joint angles are saved in CSV format for easy import into Excel or other software. All information is synchronized with each other so as to be able to analyze the phenomenon from different points of observation.

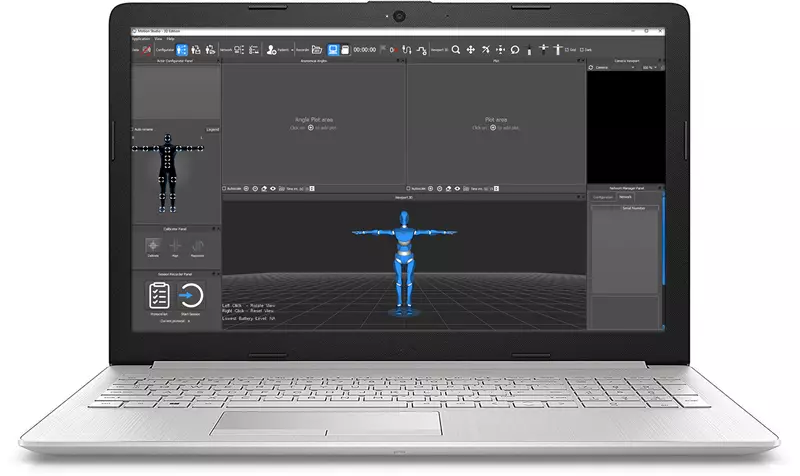

Motion Studio
The software for recording sessions and real-time visualization of:
Treadmill
The Movit System is compatible with all types of treadmills, from the most common to the most complex.
Stride time
Step time
Stance phase time
Swing phase time
Single support time
Double support time
Stride length
Step length
Shock impact shank
Shock impact foot
Cadence
Speed
Arm swing velocity forward
Arm swing velocity backwards
Arm range of motion
Trunk-pelvis coordination indexes
Arm-hip coordination index
Control strategy
Stride time
Step time
Stance phase time
Single support time
Double support time
Stride length
Step length
Shock impact shank
Shock impact foot
Angular symmetry indices
Pelvis – Obliquity
Pelvis – Tilt
Pelvis – Rotation
Hip – Abduction/Adduction
Hip – Flexion/Extension
Hip – Rotation
Knee – Varus/Valgus
Knee – Flexion/Extension
Knee – Rotation
Ankle – Inversion/Eversion
Ankle – Flexion/Extension
Ankle – Rotation
Trunk – Obliquity
Trunk – Flexion/Extension
Trunk – Rotation
Neck – Lateral bending
Neck – Flexion/Extension
Neck – Rotation
Shoulder – Flexion/Extension
3D animation file
BVH file export
Reproduction of movements
Slow motion animation
Motion Studio
The software for recording sessions and real-time visualization of:
Software modules:
GAIT Analysis
Recognized Protocols:
- Walk
- 6 Minutes walking test
- Timed Up & Go
Range of motion analysis
Recognized Protocols:
- ROM
- Joint Angles
SWAY Analysis
Recognized Protocols:
- Single point
- Multi point
- Session comparison
Jump analysis
Recognized Protocols:
- With countermovement
- Without countermovement
- Squats
- Stiffness
Features and Advantages of the Movit
