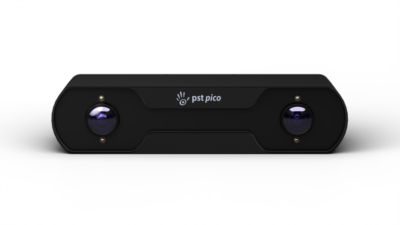

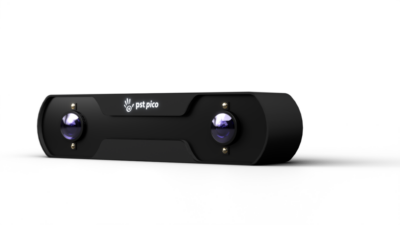

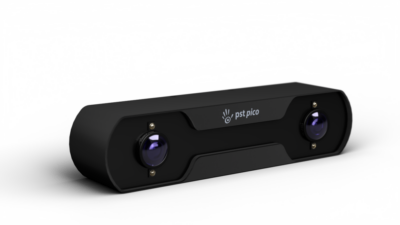

PST Pico

User interaction tracking when small size matters

The PST Pico is the smallest member of the PST tracking family. With a size of about a pair of glasses it fits almost anywhere. Trackings starts at realy nearby and thanks to the wide field of view the PST-Pico is your solution for user interaction tracking in small spaces. The PST Pico is the ideal interaction tracker to be placed on top of a monitor, in a small simulator or any installment where tracking needs to be integrated at very close range.

KEY FEATURES
  • Tracking distance: 5 cm up to 1.5 m
  • Frame rate: Adjustable up to 50 Hz
  • Data transfer: 2x USB 3.0
  • Size: 15 x 4 x 4 cm (W x H x D)
Performance
  • Accuracy: n/a
  • Latency: n/a
  • Tracking distance: 5 cm up to 1.5 m
  • Field of view: 110° (Horizontal), 100° (Vertical)
  • Refresh rate: Up to 50 Hz
  • Intended use: User interaction tracking in small and compact spaces (e.g. simulators, desktop)
Usability
  • Set up: Plug and play
  • Calibration: Pre-calibrated unit
  • Origin definition: One click process – dedicated tool included
  • Units needed for 6 DoF tracking: One, each PST Pico is a full 6DoF motion tracker
  • Expandable tracking area: n/a
  • Aligning units: n/a
  • Ambient conditions: Normal indoor lighting conditions
  • Illumination: Integrated IR LED illumination (wavelength 850 nm). Flash illumination fully adjustable in PST Software Suite 5
  • Operating temperature: 15 – 35 deg. C
Hardware
  • Weight: Approx. 0.5 kg
  • Size: 15 x 4 x 4 cm (W x H x D)
  • Mounting: 1/4”-20 UNC tripod mounting point
  • Power supply: Output 5V, 12W. Input 100-240V, 50-60Hz + USB power
  • Power consumption: Max. 15 W
Devices and Markers
  • Number of targets: At least 15 independent 6DoF bodies. For instance: simultaneous head and object tracking
  • Markers: Passive (retro-reflective flat and spherical) – Active (LED)
  • Device creation: Simple procedure: mark, train and use new device in seconds
Interfaces
  • Processing: n/a
  • Tracking application: PST Software Suite 5 (license included with each PST tracker)
  • Client operating system: Windows 7, 8 and 10 (32 and 64 bit) and Linux (64 bit)
  • Software interface: The tracker comes with an easy to use native C/C++ SDK and bindings for C# and Python. Interfacing is also supported via VRPN, trackd1, Dtrack emulation, data export to .CSV
  • Hardware interface: Requires two USB 3 ports each with full bandwidth and capable of providing 2.7 Watts min. and 5 Watts max. (ethernet connection to the PST available through the PST Software Suite 5)
  • Output: Positional coordinates (x, y, z), orientation angles, Euclidean transformation matrix
  • Synchronization: n/a

1. trackd is a trademark of Mechdyne, Marshalltown, IA, USA.
