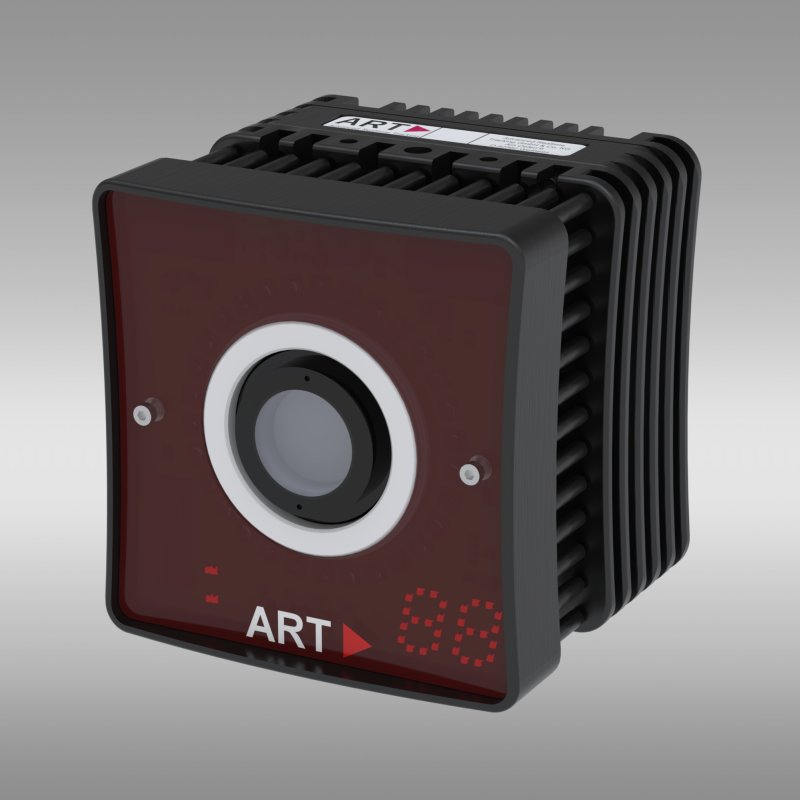

AT7-50
Maximize area per euro
Get the most coverage within your budget! The AT7-50 is ART’s cost-effective solution for medium- to large-scale tracking applications. Whether for large VR/AR arenas, robot tracking, or the localization of tools and measurement setups in industrial environments—AT7-50 cameras provide cost-effective tracking systems with high measurement accuracy.
All ART cameras are designed for a clear mission: maximum precision, uncompromising reliability, and sustainable performance in optical tracking. Once installed, ART systems deliver consistently accurate measurement data for many years—ensuring the long-term success of your application.
Thanks to advanced algorithms, you benefit from exceptionally wide-angled capture volumes: even large spaces are fully covered right into the farthest corners. For you, this means: Fewer cameras, reduced installation effort, and significantly more efficient use of your space — without compromising on accuracy.
With ART, you choose a future-proof tracking solution that perfectly combines performance, efficiency, and quality.
Technical specifications
Image sensor
2464 × 2064 pixels, 5 MPix
Frame rate (sensor)
230 Hz full frame, up to 500 Hz with reduced field of view
Image processing
On-camera (on the fly)
Status indicator
Dimmable alphanumeric display, status LED and RGB LED ring
IR source
High-power LEDs, 850 nm, adjustable intensity (exempt group per IEC 62471-1)
Filters
Longpass
Effective transmission
> 830 nm
IF filter (optional)
Optional narrow-band bandpass filter (IF) to suppress unwanted stray light / wavelengths (factor 10 vs. standard variant). Low-level camera parameters to further improve daylight sensitivity in your specific scenario.

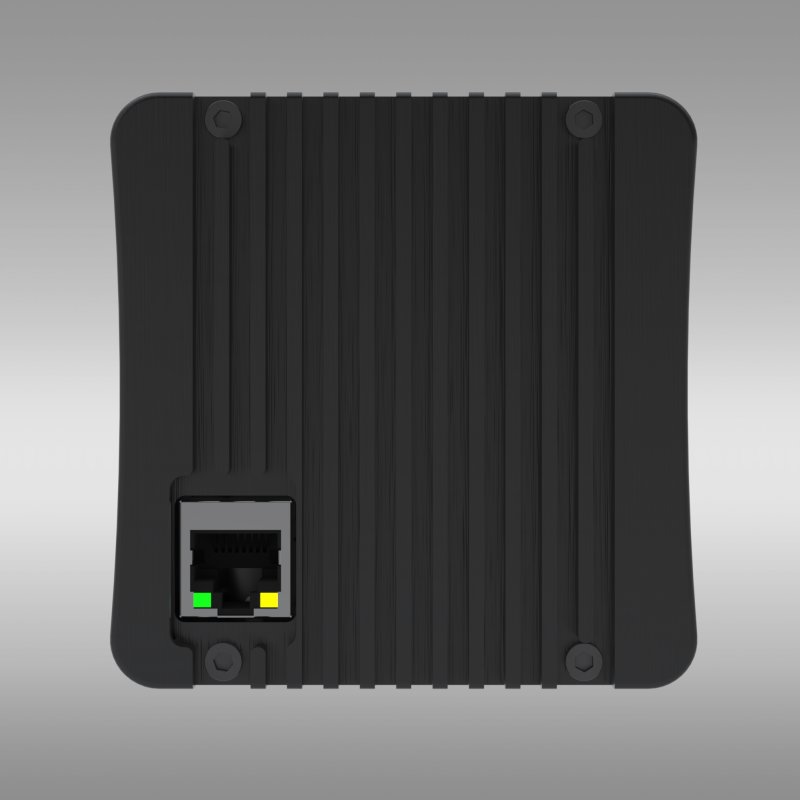

Data transfer & power
Single-cable solution
Data & sync: Gigabit Ethernet (RJ45)
Power: PoE+ (IEEE 802.3at-2009) / PoE (IEEE 802.3af-2003)
Max. 100 m cable (min. CAT5)
Synchronization
Via Gigabit Ethernet
Physical properties
Size (W × H × D)
83 x 84 x 78 mm
Weight
Approx. 650 g
Cooling
Passive, noiseless
Operating temperature
0 – 35 °C
Relative humidity
5…85% (non-condensing)
Power consumption
Max. 16 W
Mounting
Ceiling mount with a standard tripod thread
Compatibility
Compatibility
from DTRACK4 on
Peripherals: passive Targets, LP-Research, Fingertracking, Measurement Tool, Flystick, active Targets
More Information
Related Products
With the growing requirements of cost and space savings, as well as of flexible and easy to integrate systems without

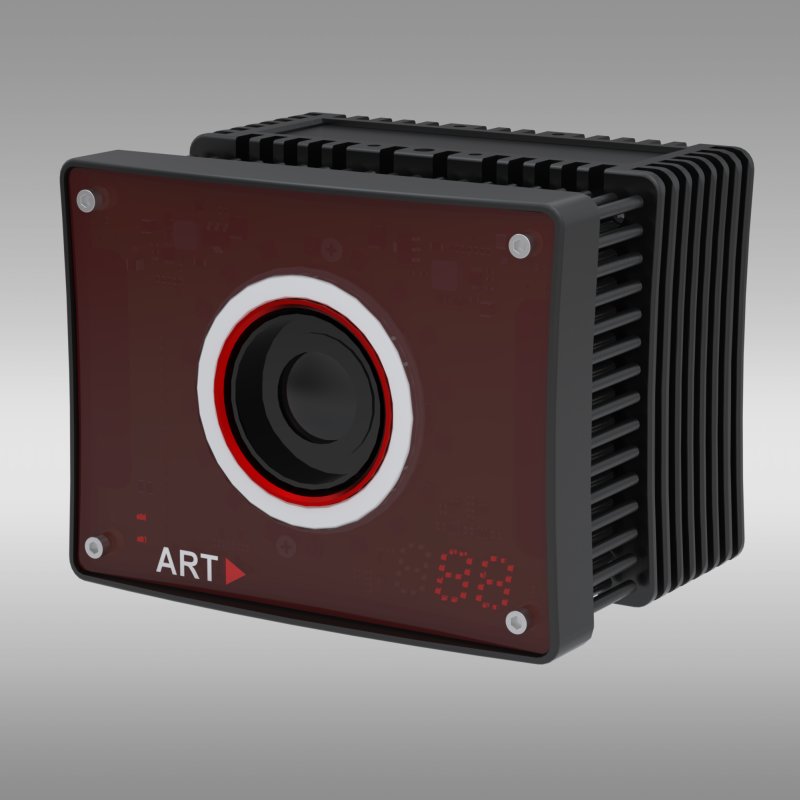

Premium tracking camera for large volumes and high-precision measurement — standard or IF variant for sunny environments.
The DTRACK control software is the heart of every ART system. Its purpose is to support fast, easy and accurate setup of your camera configuration

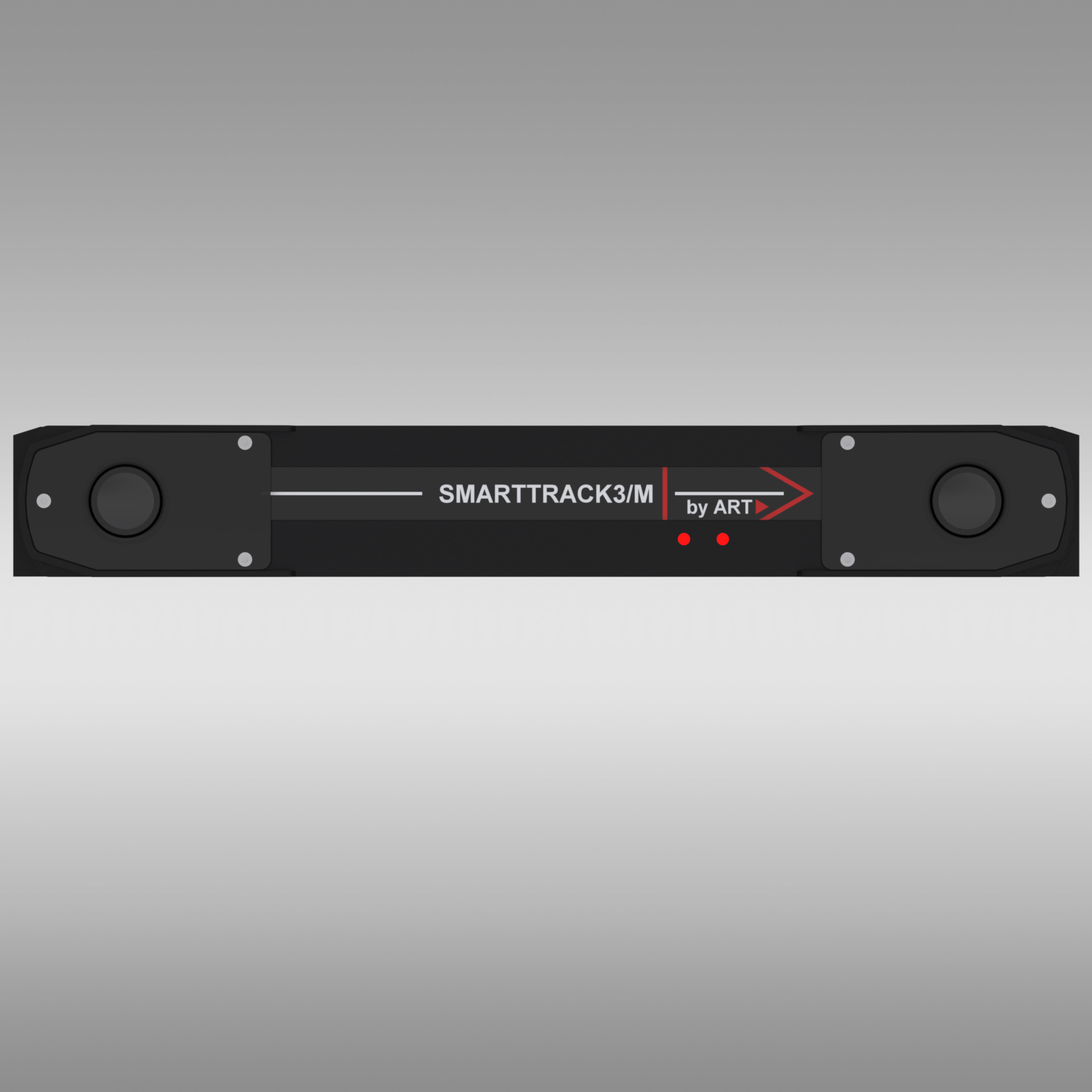

Compact and powerful for tight spaces and cockpits — optionally with internal filter (IF) for tracking in sunlight.
