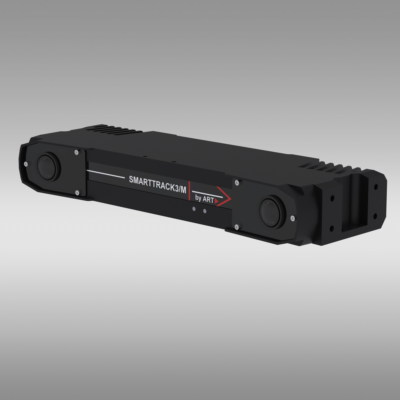

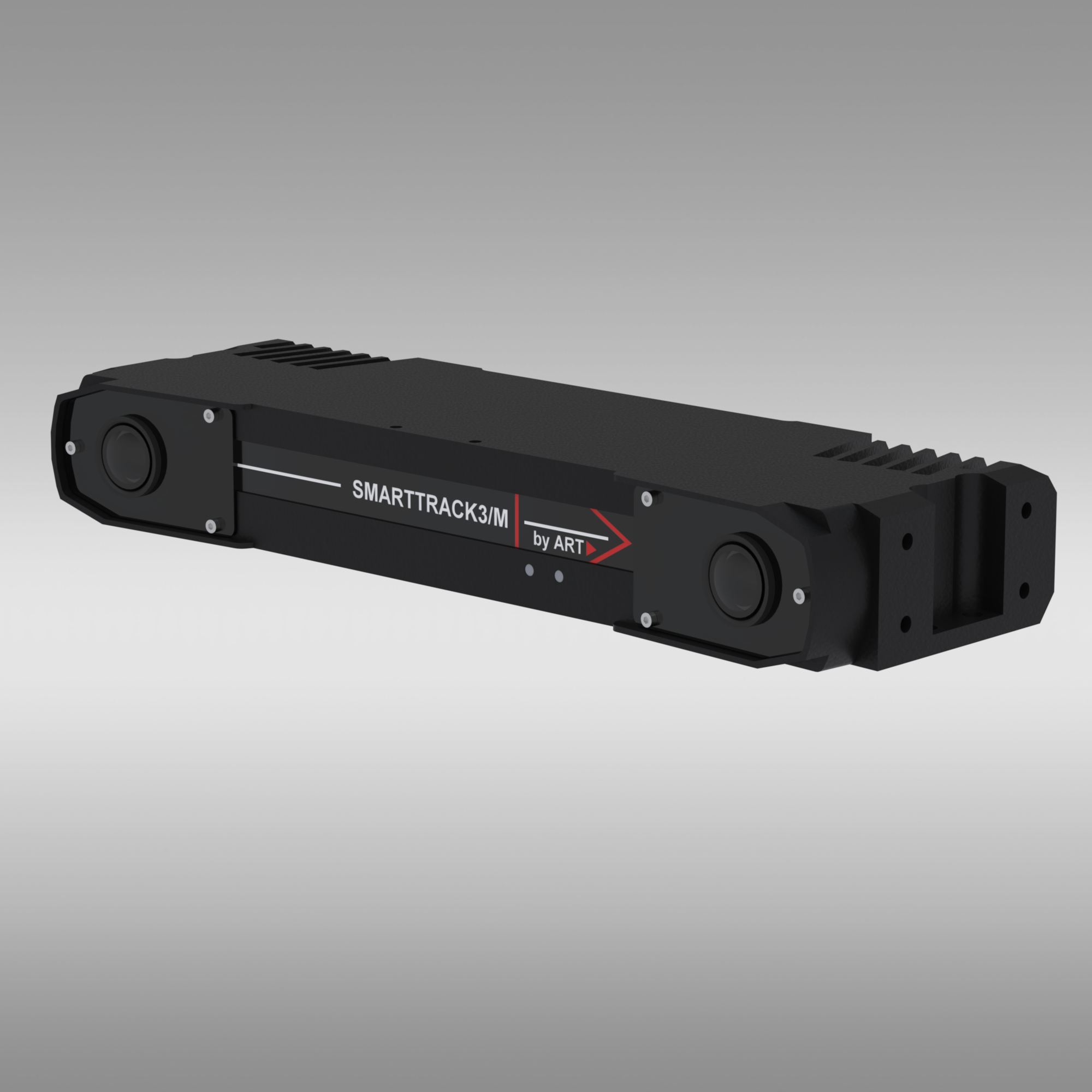

SMARTTRACK3/M
Compact and Plug & Play – Perfect for small tracking areas
Ideal for setups such as vehicle simulators, the SMARTTRACK combines two cameras and a Controller in a single, pre-calibrated housing. This makes it a fully mobile, ready-to-use tracking system.
Flexible and powerful
- Supplied with a calibration kit and mounting hardware in a carrying case.
- Scalable: Multiple SMARTTRACK units can be cascaded for larger setups
- High Performance: Operates at up to 240 Hz with ultra-low latency (6ms@240Hz).
- Convenient: The DTRACK3 software is already pre-calibrated upon delivery.
Technical specifications
Image sensor
1280 × 1024 pixels
Frame rate (sensor)
180 Hz full frame, up to 240 Hz with reduced field of view
Image processing
On-camera (on the fly)
Status indicator
2 dimmable LEDs
IR source
High-power LEDs, 850 nm, adjustable intensity (exempt group per IEC 62471-1)
Filters
Longpass
Effective transmission
> 830 nm
IF filter (optional)
Optional narrow-band bandpass filter (IF) to suppress unwanted stray light / wavelengths (factor 10 vs. standard variant). Low-level camera parameters to further improve daylight sensitivity in your specific scenario.

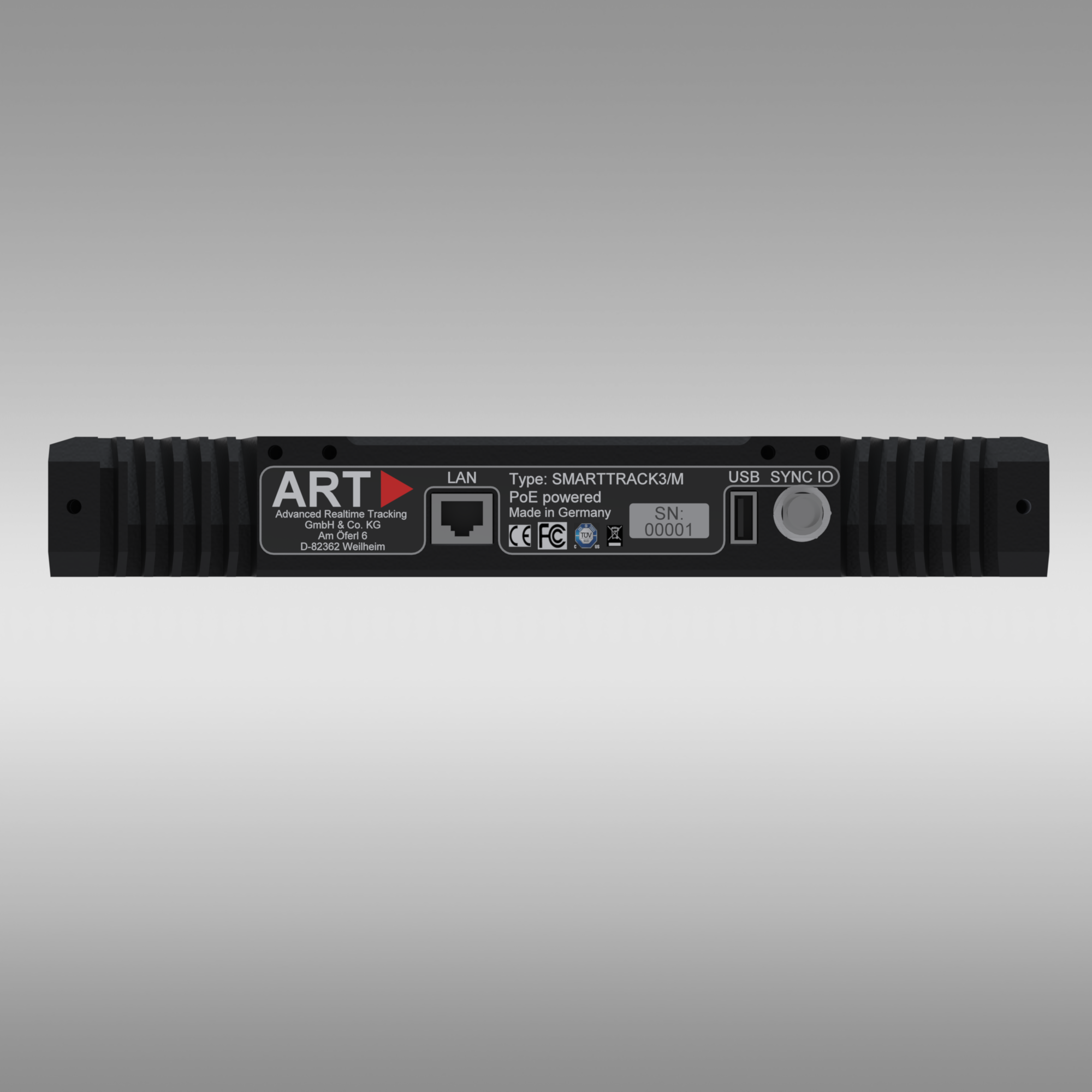

Data transfer & power
Single-cable solution
Data: Gigabit Ethernet (RJ45)
Power: PoE (IEEE 802.3af-2003)
USB 2.0 for peripherals
Max. 100 m cable (min. CAT5)
Synchronization
1× BNC: video signal (75 Ω), TTL, LVTTL (input and output not simultaneously)
Physical properties
Size (W × H × D)
Approx. 280 × 40 × 90 mm
Weight
Approx. 1.0 kg

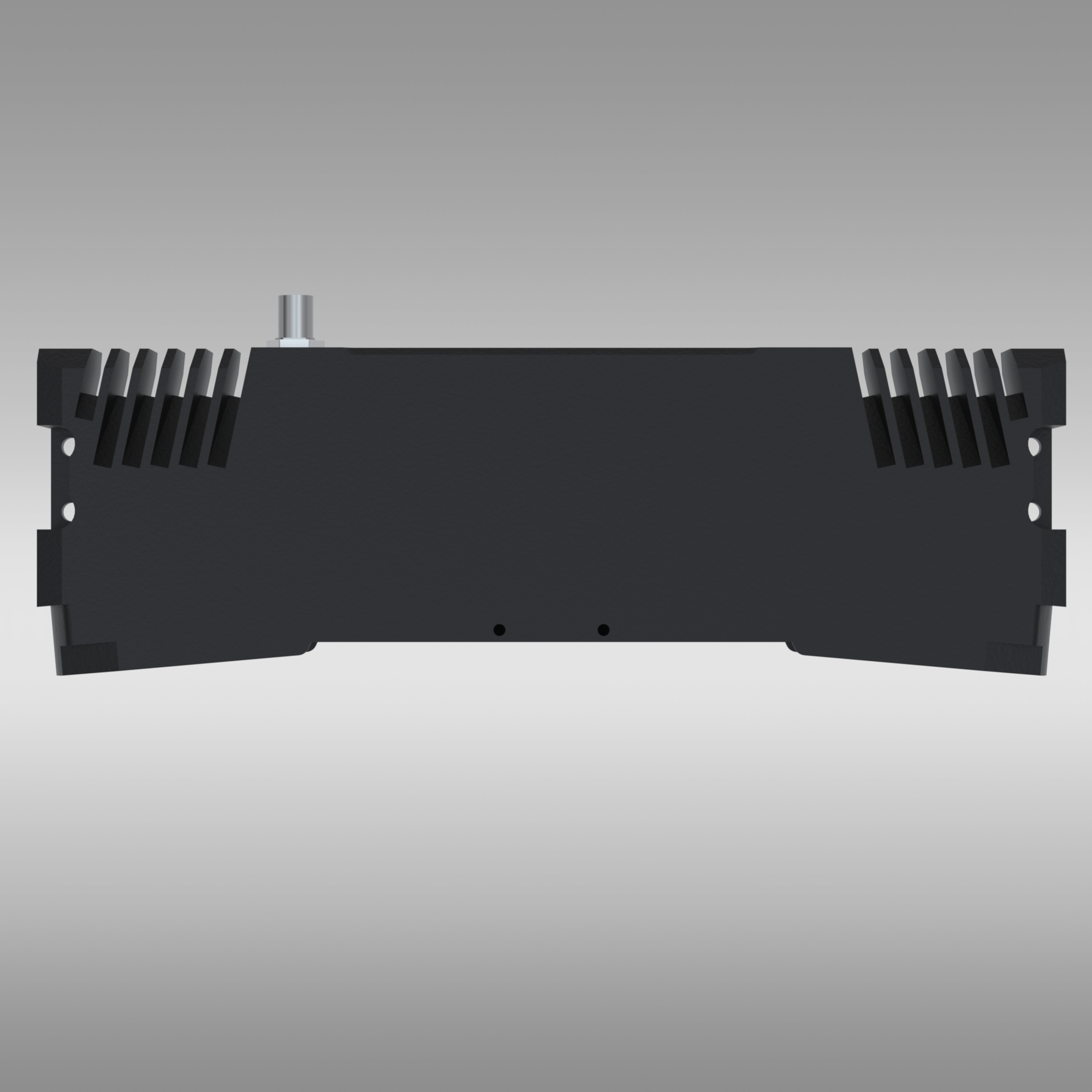

Cooling
Passive, noiseless
Operating temperature
0 – 35 °C
Relative humidity
5…85% (non-condensing)
Power consumption
12 W

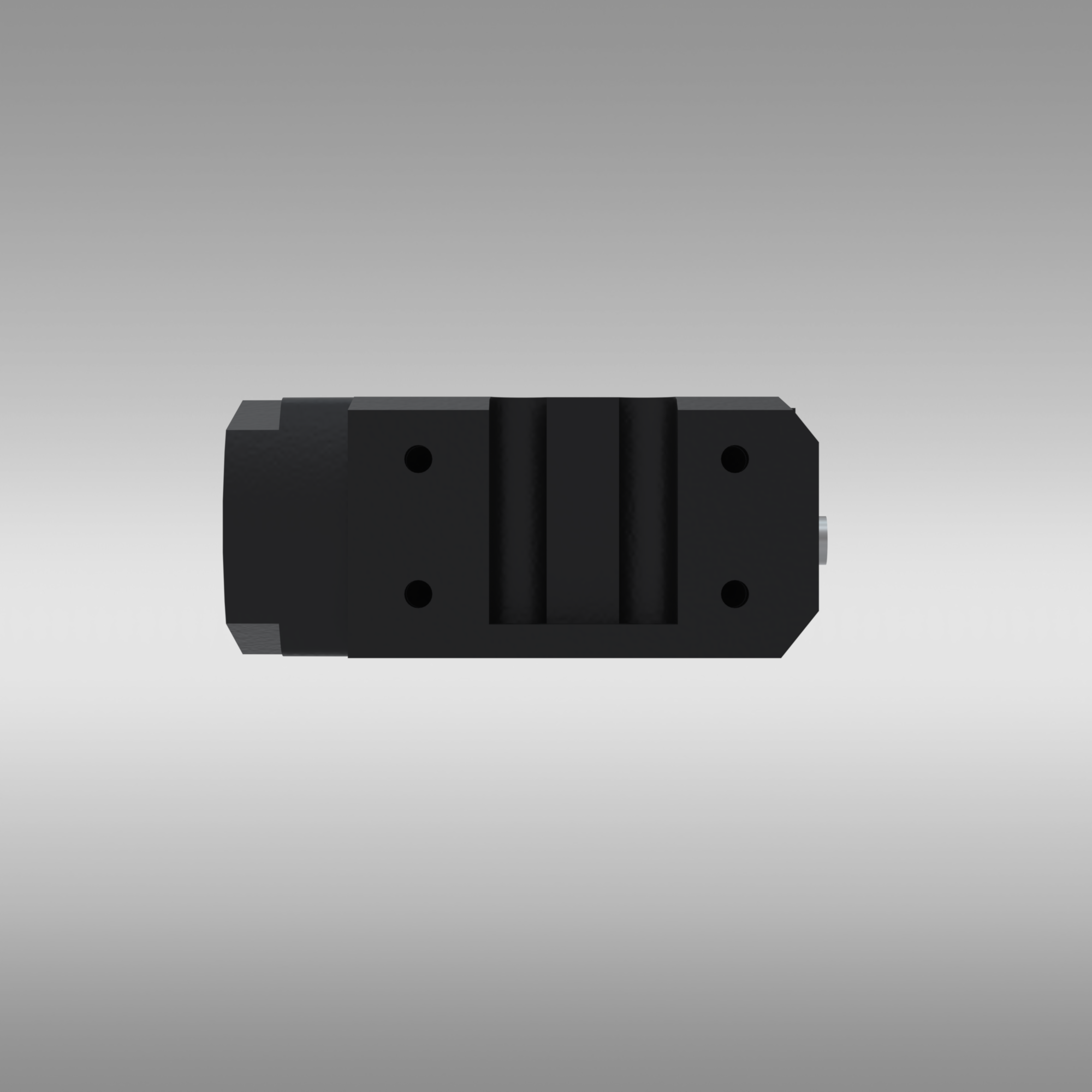

Mounting
Optimized mounting for integration in tight spaces
Compatibility
Compatibility
Cascade between two SMARTTRACKs possible
Peripherals: passive Targets, LP-Research, Measurement Tool, Flystick, active Targets
